砂型鋳造

砂型鋳造(Sand mold casting)

スポンサーリンク



1. 単語

A. 模型(pattern)

・木型: wood pattern
・金型: metallic pattern
・現型: solid pattern
・単体模型: one piece pattern
・分割模型: split pattern
・組立模型: built up pattern
・回し型: sweeping pattern
・かき型: stricking pattern
・骨組み型: skeleton pattern
・中子型: core pattern (core box)
・マッチプレート: match plate
・パターンプレート: pattern plate



B. 鋳型(mold)

・受け口: pouring cup
・かけぜき: pouring basin
・湯口: downsprue (sprue, gate)
・湯道: runner
・せき: ingate
・ガス抜き: gas vent (vent)
・上がり: riser
・押湯: dead head  Notes:英文の文献では、押湯を”riser”としている場合が多いです。
・絞り: choke
・上半型: cope
・下半型: drag
・上枠: cope flask
・下枠: drag flask
・定盤: molding board
・中子押え(ケレン): chaplet
・冷し金: chill (chilling-block)

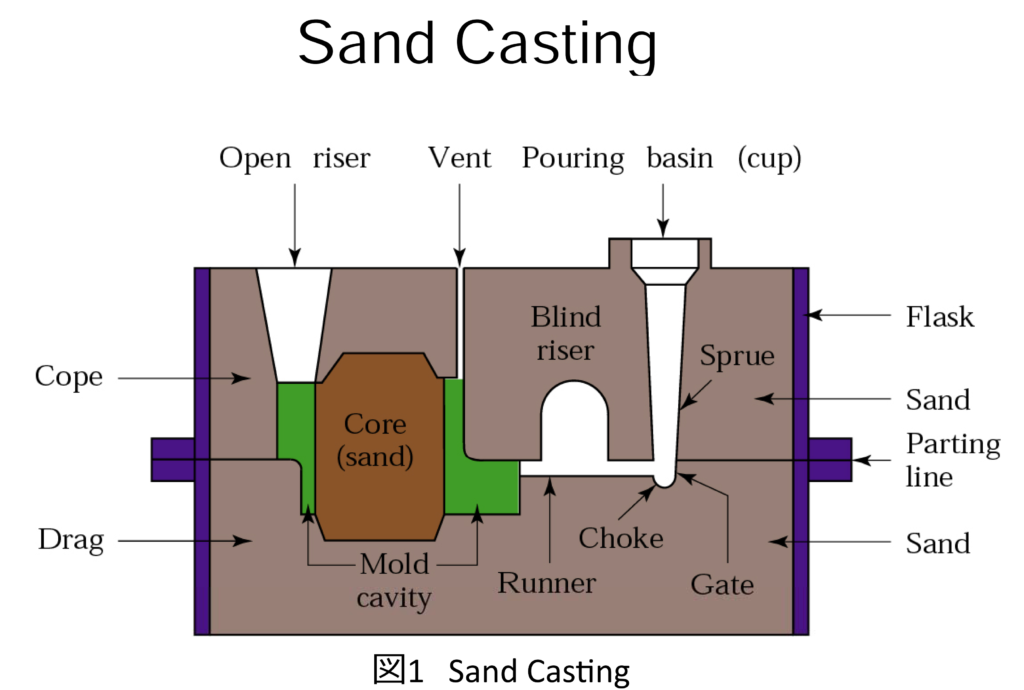

図1: Sand Casting

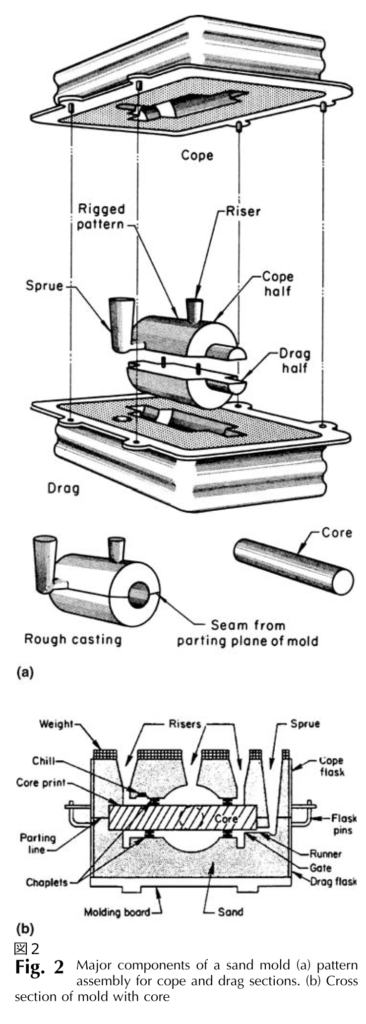

図2: Major components of a sand mold



2. 例文

/ The need for dead heads depends on the alloy being cast and the geometry of the mold cavity. For example, cast iron often needs very little in the way of dead heads, because graphite expansion during solidification may compensate for the shrinkage of the iron.

/ The first requirement is that the mold material must flow or be pliable enough to encapsulate the surface around the shape of the pattern.







参考文献
Casting Design and Performance   ASM International   2009
Casting Processes ver.1  Prof. J. S. Colton   Georgia Institute of Technology  2009



引用図表
図1: Sand Casting    Casting Processes ver.1
図2: Major components of a sand mold     Casting Design and Performance
